Mounts

Mounts

MADE IN CZECH REPUBLIC

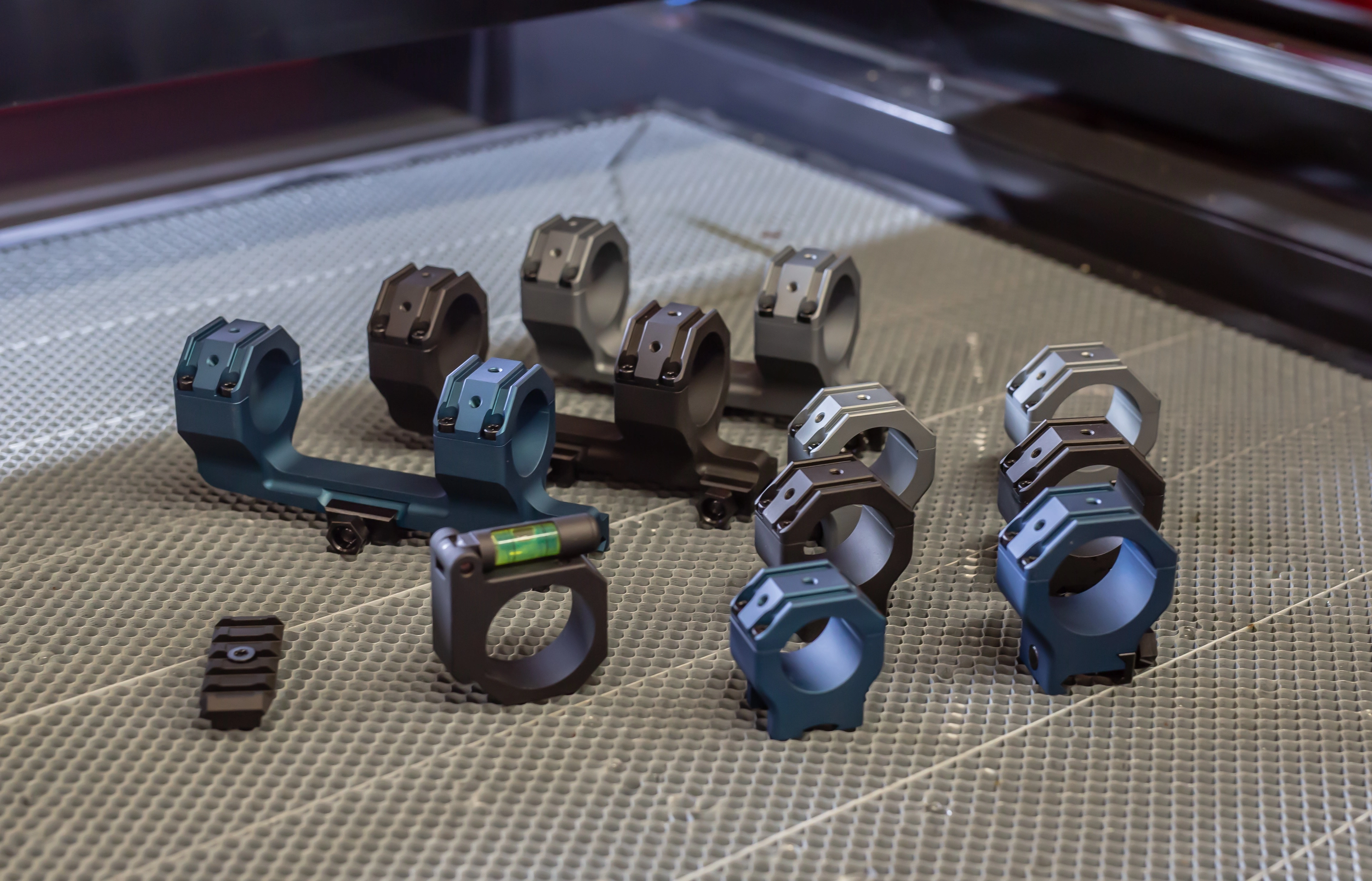

We produce one of the best possible riflescope mounts from the highest grade

materials and components. Produced on CNC machines in the Czech Republic.

Intended for all military and heavy recoils sniper rifles. Our mounts offer multiple interface surfaces for different accessories.

FEATURES
  • LIFETIME WARRANTY
  • Manufactured from High Grade EN AW-7075 Aluminum
  • Large scope clamping area to withstand heavy recoil
  • Available in 25,4mm / 30mm / 34mm tube sizes
  • Special hard anodised finish
  • Built in multiple interface for accessories
  • CNC machined in the Czech Republic
  • Supplied in Hard Plasic Case complete with necessary Torx Key
MATERIAL

Mount Material - EN AW7075 Aluminum Finish - Sealed Hardcoated finish Level - Clear plastic spirit level Screws  - M4 x 10 rings and interfaces - M4 x 10 clamping screws - 8.8 grade steel

Mounts
Features
Mount specs

11mm (dovetail)

Valiant Mounts 11mm

Rail

Ring Height

Dimension A (mm)

Dimension B (mm)

Dimension C (mm)

Dimension D (mm)

Weight (grams)

Item code

11 mm

LOW

25,4

11

25

24

65

VLM012

11 mm

MEDIUM

25,4

11

25

27

71

VLM013

11 mm

HIGH

25,4

14

25

30

78

VLM014

11 mm

LOW

30

11

25

26

71

VLM009

11 mm

MEDIUM

30

11

25

29

78

VLM010

11 mm

HIGH

30

14

25

32

85

VLM01

Snímek obrazovky 2021-03-24 v 14.09.28.png

22mm (Weaver)

Valiant Mounts 22mm

Rail

Ring height

Dimension A (mm)

Dimension B (mm)

Dimension C (mm)

Dimension D (mm)

Weight (grams)

Item code

22mm

Low

25,4

25

20

79

VLM006

22mm

Medium

25,4

10

25

23

89

VLM007

22mm

High

25,4

13

25

26

87

VLM008

22mm

Low

30

25

22

80

VLM003

22mm

Medium

30

10

25

25

90

VLM004

22mm

High

30

13

25

28

96

VLM005

22mm

Medium

34

11

25

25

91

VLM001

22mm

High

34

14

25

28

97

VLM002

Snímek obrazovky 2021-03-24 v 14.09.28.png

Cantilever

Rail

Ring height

Dimension A (mm)

Dimension B (mm)

Dimension C (mm)

Dimension D (mm)

Weight (grams)

Item code

22 mm

MEDIUM

30

22

25

38

250

VLM016

22 mm

MEDIUM

34

22

25

38

250

VLM017

Snímek obrazovky 2021-03-24 v 14.09.28.png

Spirit level / Picatinny rail

ITEM

TUBE

WEIGHT

ITEM CODE

Level Mount 254

25,4 mm

56 g

VLM017

Level Mount 300

30 mm

64

VLM018

Picatiny Rail L545

20 g

VLM019
